Electronics
Motor
TENWAYS C9 Hub Motor (250W Power, 45 Nm Max. Torque)
Controller
Vector Sine Wave Controller
Sensor
Torque Sensor
Minimalist Dash Control
TENWAYS Display with Boost Function
Battery
374 Wh (36V, 10.4Ah) Lithium-ion Battery with LG Cells
Smart Connect
Connect via TENWAYS APP
Lights
StVZO-compliant
Performance
Top Speed
25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range
Up to 85 km*
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability
Suitable for moderate urban slopes*
*The actual performance would depend on the rider's physical strength.
Component
Frame
6061 Aluminium Frame
Crankset
Gates CDX Crankset
Drivetrain
Single Speed Drivetrain
Gates CDN Carbon Belt
Front Fork
6061 Aluminium Front Fork
Tires
TENWAYS Customized Tires
Brake
Hydraulic Disc Brakes
Bottom Bracket
Fully-concealed Bottom Bracket
Saddle
Selle Royal Saddle
Weight*
Net weight: 21 kg (excluding all accessories)
Full weight: 23 kg (including all accessories)
Permissible Max. Weight: 145 kg
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
Rear Carrier
TENWAYS Customized Rear Carrier*

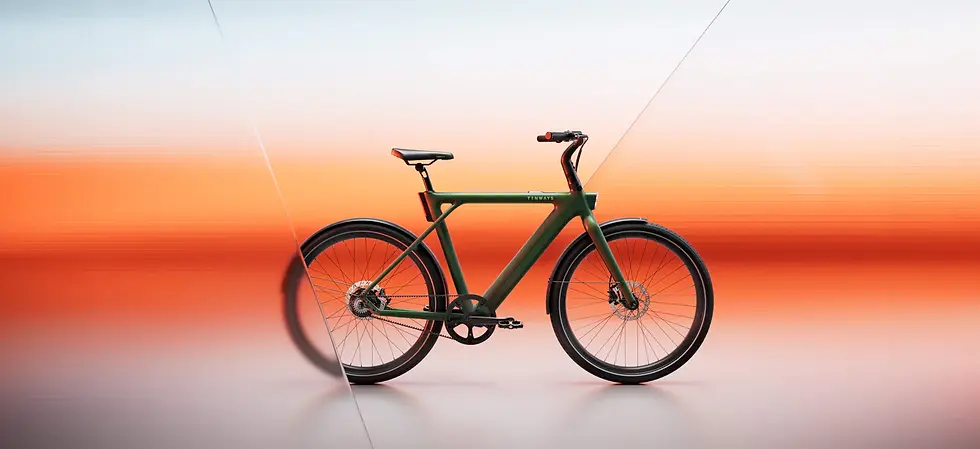

*Included with your CGO009 order
*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
Geometry
One Size (mm)
SYMBOL

Effective top tube
A
634
Seat tube length
B
573
Head tube
C
150
Steering angle
D
68.5
Seat tube angle
E
71.7
Chainstay
F
474
Wheelbase
G
1172.9
Standover
H
852
