A premium-performance e-bike primed for smoothing out your daily errands on all urban terrains.Gates Carbon Belt DriveEnviolo Stepless Shifting Hub80 Nm Mid-drive Motor504 Wh Portable BatteryIntegrated Torque SensorHydraulic Lockout ForkHydraulic Disc Brakes
Electronics
Motor
Bafang M420 Mid-drive Motor (250W Power, 80 Nm Max. Torque)*
*The torque output under most urban settings is around 55 Nm. The motor will only use max. torque output to support riding on some extremely complex road surfaces.
Sensor
Integrated Torque Sensor for the Mid-drive Motor
Controller
Integrated Controller for the Mid-drive Motor
Display
TFT LCD Color Display
Battery
36V, 14Ah Lithium-ion Battery with LG Cells
Lights
StVZO-compliant
Performance
Top Speed
25 km/h*
*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations.
Range
Up to 100 km*
*Actual performance will vary depending on temperature, road conditions, rider's weight, etc.
Climbing Ability
Suitable for Climbing Slopes*
*The actual performance would depend on the rider's physical strength.
Component
Frame
6061 Aluminium Frame
Crankset
Aluminium Alloy Crankset
Wheels
6061 Aluminium Rims
Front Fork
Hydraulic Lockout Fork
Tires
CST Puncture-proof 28" Tires
Brake
Hydraulic Disc Brakes
Drivetrain
Gates CDX Carbon Belt

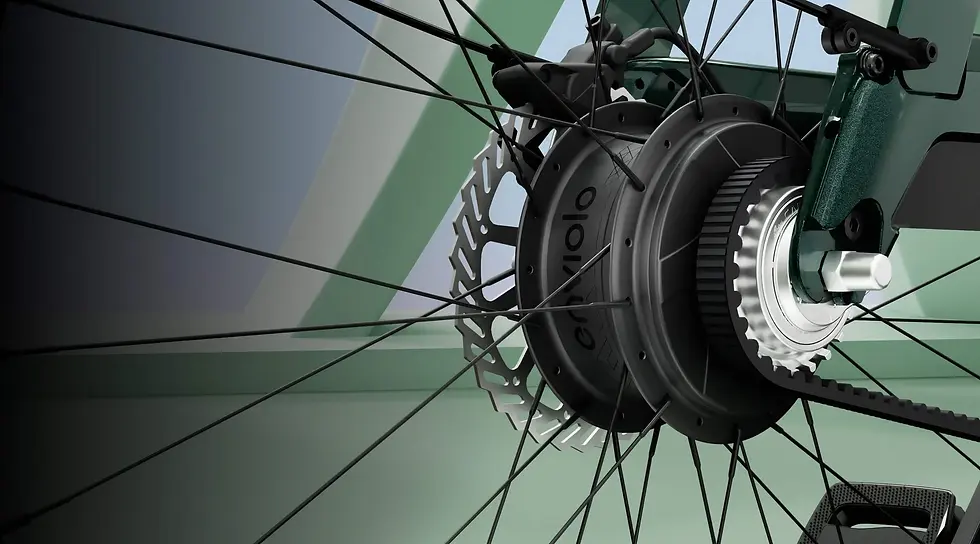

Enviolo Stepless Shifting Hub
Bottom Bracket
Integrated with the Bafang M420 Mid-drive Motor
Weight*
Net weight: 30 kg (excluding all accessories)
Full weight: 31 kg (including all accessories)
Permissible Max. Weight: 150 kg
Rear Carrier Max. Load: 25 kg
*All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery and all accessories.
*Specifications are subject to change without notice. In case of unexpected supply-side impacts, we will offer components of equivalent or better capabilities.
Geometry
One Size (mm)
SYMBOL

Effective top tube
A
628.7
Seat tube length
B
483
Head tube
C
200
Steering angle
D
71
Seat tube angle
E
73
Chainstay
F
471.5
Wheelbase
G
1130.8
